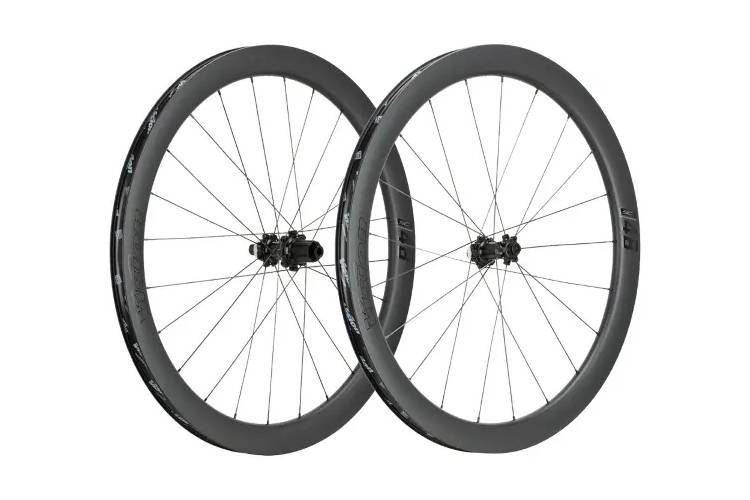

VISION SC 48 i25 DB-CL CH-TL XDR Wheels

The Vision SC 48 i25 is a premium carbon wheelset designed to deliver the perfect balance of aerodynamics, lightweight performance, and versatility. Featuring a 48 mm rim depth and a 25 mm internal rim width, it is engineered for both road and gravel bikes, providing outstanding performance with modern wide tires.

Hand-built and equipped with proven Vision V-200 hubs and 2:1 laced straight-pull aero spokes, the SC 48 i25 offers excellent stiffness, reliability, and easy maintenance. Tubeless Ready technology and a disc brake-specific design make this wheelset an ideal choice for riders seeking speed, precision, and comfort on every ride.

Main Features

• Full carbon rims
• 48 mm aerodynamic rim profile
• 25 mm internal rim width
• Tubeless Ready technology
• Compatible with Road and Gravel bikes
• Vision V-200 hubs
• Straight-pull aero spokes with 2:1 lacing pattern
• 6 sealed cartridge bearings
• Center Lock disc brake interface
• Hand-built construction
• Compatible with Shimano HG, Shimano Micro Spline, and SRAM XDR freehub bodies

Technical Specifications

Rims

• Material: Carbon
• Rim depth: 48 mm
• Internal rim width: 25 mm
• Technology: Tubeless Ready
• Compatibility: Tubeless Ready clincher tires or inner tubes

Hubs

• Vision V-200
• Center Lock disc brake interface
• Straight Pull hub design
• 6 sealed cartridge bearings (2 front + 4 rear)

Spokes

• 24 front spokes
• 24 rear spokes
• Flat aero spokes
• 2:1 lacing pattern

Compatibility

• Center Lock disc brakes
• Shimano HG freehub
• Shimano Micro Spline freehub
• SRAM XDR freehub

Weight

• Claimed weight: 1,594 g per pair

Ideal Use

• Road cycling
• Gravel riding
• Training
• Racing
• Gran Fondo events
• Mixed terrain
• Long-distance rides

Advantages

• 48 mm aerodynamic profile for excellent speed and stability
• 25 mm internal rim width optimized for modern wide tires
• Lightweight and stiff full carbon construction
• Reliable and easy-to-maintain Vision V-200 hubs
• Hand-built for superior build quality
• Compatible with the most common drivetrain standards
• Excellent balance between road and gravel performance
• Tubeless Ready for improved comfort, grip, and puncture resistance
