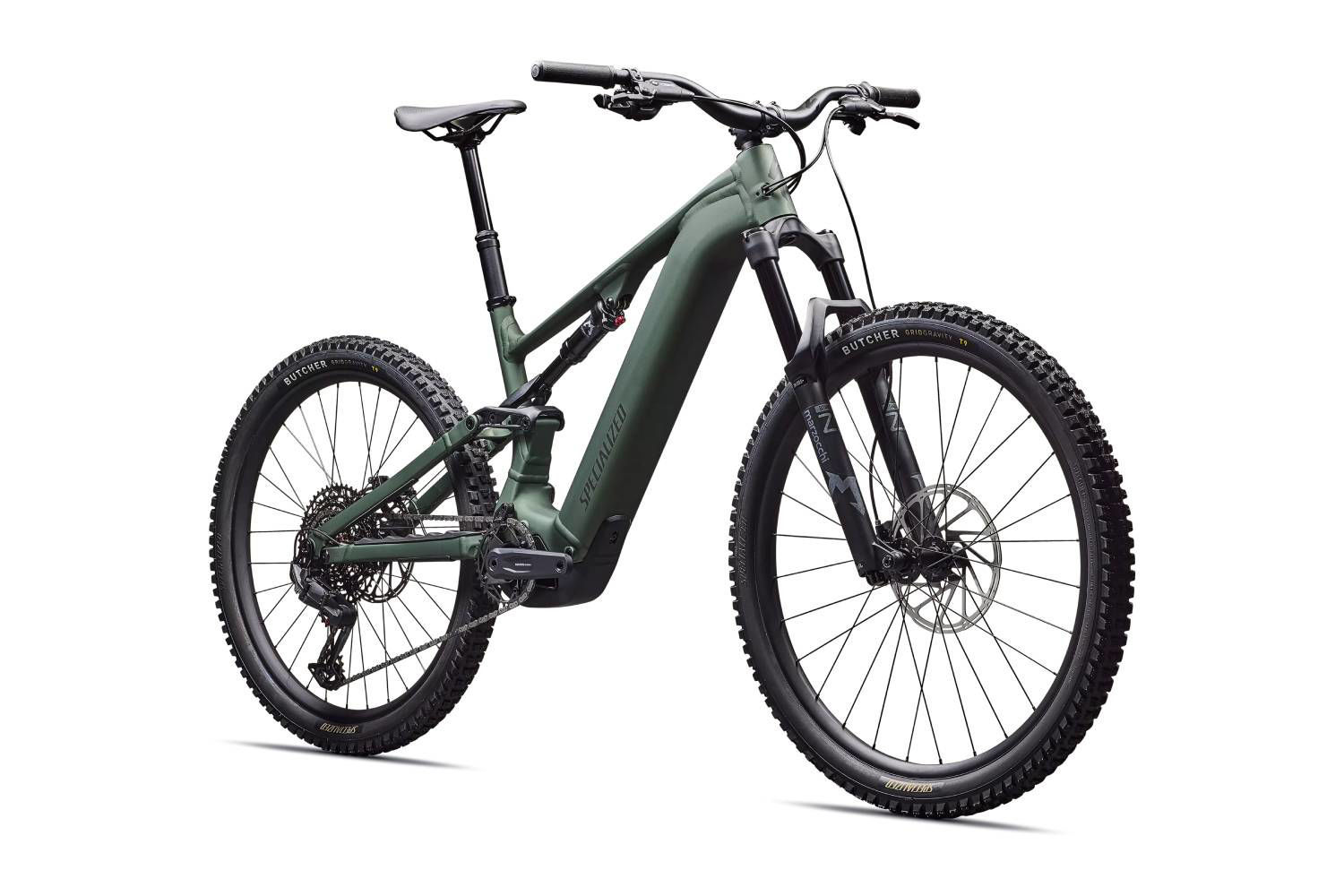

SPECIALIZED Turbo Levo 4 Alloy Satin Cypress Dark Moss Green My26

SuperNatural power, guidance and autonomy

The Specialized Science Club presents the Levo 4, an electric mountain bike so advanced that it turns you into a cycling cyborg. Together you become a supernatural force capable of conquering any terrain off-road. Pedaling assistance, traction, control and range of the Levo 4 are your new superpowers. Levo 4, Where Super Meets Natural.

Main features

Usage

Full Power E-MTB, trail

E-System

Specialized 3.1 motor with 666 W and 101 Nm, 840 Wh battery, up to 5.33 hours of autonomy

Frame

Premium M5 alloy, adjustable geometry and SWAT compartment

Suspensions

Front: 160mm Marzocchi Bomber Z1<br>Rear: 150mm Marzocchi Inline Bomber

Transmission

SRAM Eagle 70 T-Type

Wheels

Specialized Alloy Hoop /Bear Pawls Hubs

Specific techniques

Electronics
User/remote Interface
New MasterMind T3 display system, 2.2" high resolution color screen, fully customizable with specialized app
Engine
Specialized engine 3.1, torque 101 Nm, power 666 Nm
Charger
Specialized 4 amp charger
Battery
840 Wh battery
Frame
Saddle collar
Alloy, 38.6 mm
Frame
Completely new Levo 4 M5 alloy frame, 150 mm travel, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT compartment, 148 mm spacing, 29 "front wheel/27.5" rear wheel, fork travel up to 180 mm
Fork
Marzocchi Z1, 29 "bomber, S2-S6:160 mm, S1:150 mm, compression adjustment
Suspensions
Rear shock absorber
*Marzocchi Inline Bomber, EVOL LV air sleeve, rebound adjustment, 210x55mm
Brakes
Front brake
SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220 mm Centerline rotor
Posteror brake
SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200 mm Centerline rotor
Transmission
Sprocket pack
XS-1270, 12 speeds, 10-52t
Gears
SRAM 34t T-Type crown, 104 BCD, steel
Chain
SRAM Eagle 70 type T flat chain
Rear gearbox
SRAM Eagle 70 T-Type
Commands
SRAM 70 Trigger, 12 Speed, Single Click
Seal
SRAM S1000 gasket, ISIS interface, integrated protection, 55 mm chain, 155 mm
Wheels
Rear tyre
Butcher, casing GRID GRAVITY, compound GRIPTON® T9, TLR, 27,5x2,4"
Front tyre
Butcher, casing GRID GRAVITY, compound GRIPTON® T9, TLR, 29x2,4"
Rays
DT Swiss Elemental
Front Hub
Alloy sealed cartridge bearings, through axle 15x110 mm, 28 hours
Rear hub
Alloy, sealed cartridge bearings, thru axle 12x148 mm, 32h
Circles
Specialized, hookless alloy, internal width 30 mm, ready for use without inner tube
Inner tube
Standard Presta valve
Cockpit
Handlebar attachment
Alloy tow rod, 35 mm bar hole
Saddle
Body geometry Bridge saddle, steel rails
Sombre
Specialized trail grips
Seatpost
TranzX dropper, 34.9 mm, S1:100 mm, S2:125 mm, S3:150 mm. S4-S5: 170 mm, S6: 200 mm
Cockpit
Handlebar
Specialized, 6061 alloy, 6 degree upward tilt, 8 degree
