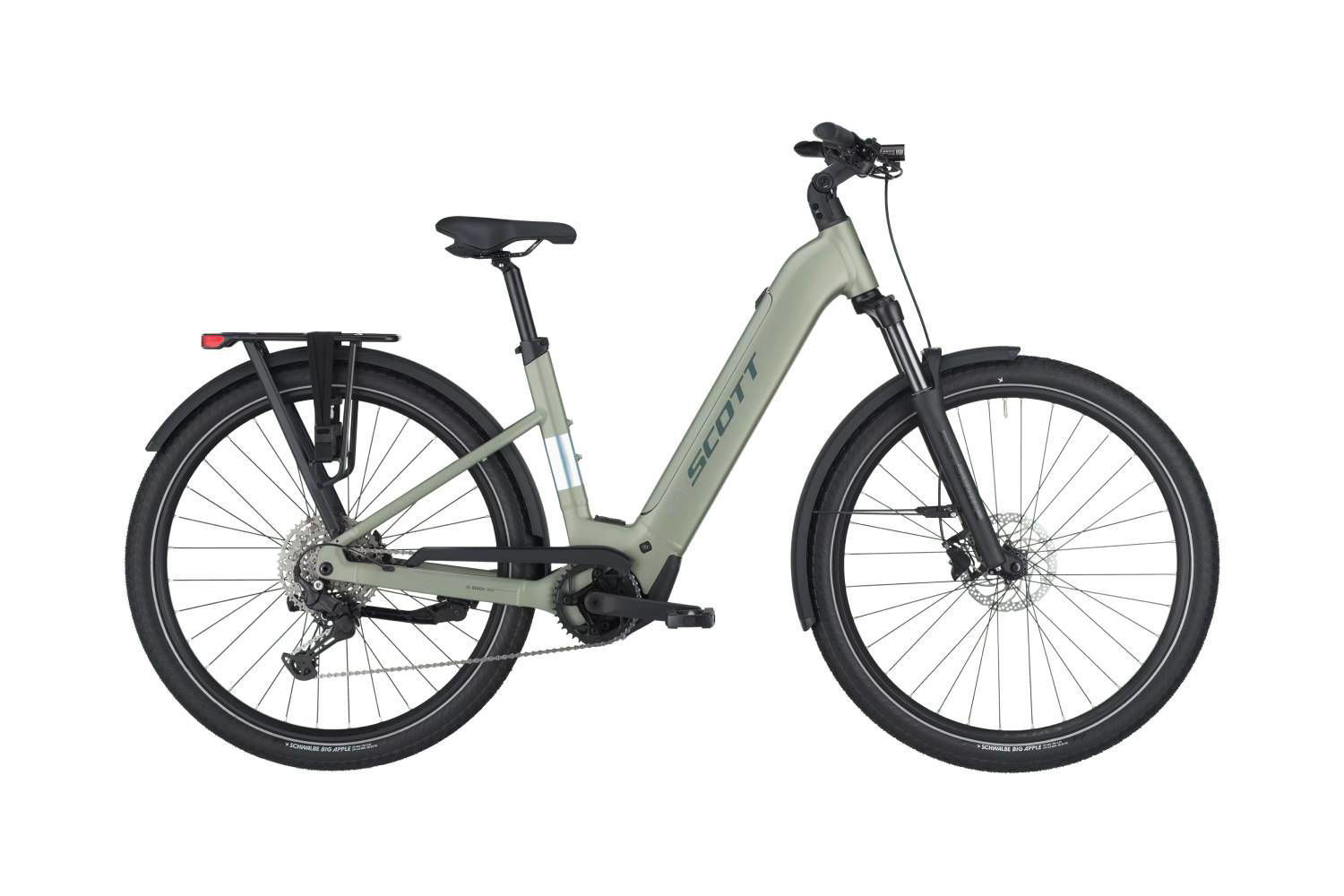

SCOTT Sub 30 Wave Aztec Green

The SCOTT SUB 30 Wave is an urban e-bike designed for riders looking for comfort, practicality, and plenty of range for everyday commuting and leisure rides.

The low-step Wave frame makes getting on and off the bike particularly easy and comfortable, while the powerful Bosch Performance CX motor and integrated 600 Wh PowerTube battery provide all the assistance needed, even on longer routes.

The bike is equipped with an SR Suntour fork with 100 mm of travel, a 10-speed Shimano CUES drivetrain, and Shimano disc brakes. The practical Racktime SnapIt 2.0 rear rack, with a load capacity of up to 27 kg, is ideal for carrying bags, backpacks, or groceries.

Integrated lights, mudguards, and a kickstand complete the setup, making the SUB 30 Wave ready for everyday use both in the city and during leisure rides.

Key Features

• Urban/trekking e-bike with low-step Wave frame
• 6061 Alloy frame
• Bosch Performance CX motor
• Integrated Bosch PowerTube 600 Wh battery
• Bosch Purion 200 display
• SR Suntour XCM34 LO Coil fork, 100 mm travel
• Shimano CUES 10-speed drivetrain
• Shimano BR-MT200 disc brakes
• Schwalbe Big Apple Performance 60-622 tires
• Racktime SnapIt 2.0 rear rack, 27 kg load capacity
• Integrated front and rear lights
• Curana mudguards
• Ursus kickstand
• Trailer-ready with Syncros adapter
• Approx. weight: 30 kg
• Maximum system weight: 160 kg

Technical Specifications

Frame

• Material: 6061 Alloy
• Geometry: Wave
• Sizes: S-XL
• Wheel size: 29"
• UDH interface
• Rear axle spacing: 12x148 mm
• Chainline: 52 mm

Motor & Battery

• Motor: Bosch Performance CX
• Maximum assisted speed: 25 km/h
• Battery: Bosch PowerTube 600 Wh
• Display: Bosch Purion 200
• Charger: 2A

Drivetrain

• Rear derailleur: Shimano CUES RD-U6000GS, 10-speed
• Crankset: FSA CK-220, 170 mm
• Chainring: FSA 38T
• Chain: Shimano LG500
• Cassette: Shimano CS-LG40010, 11-48T
• Chain guide: Syncros

Brakes

• Brakes: Shimano BR-MT200 Disc
• Front rotor: 180 mm, Center Lock
• Rear rotor: 160 mm, Center Lock

Wheels

• Rims: Syncros X18 Disc
• Front hub: Shimano HBTC50015BB CL, 15x110 mm
• Rear hub: Shimano FHTC500HMBB, 12x148 mm
• Tires: Schwalbe Big Apple Performance 60-622
• Spokes: Black Spokes

Components

• Handlebar: Syncros UC3.0, 680 mm
• Stem: Syncros UC 3.0 adjustable, with front light mount
• Seatpost: Syncros 3.0, 31.6 x 350 mm
• Saddle: Syncros Capilano
• Headset: Acros, 1.5"-1.5"
• Pedals: Marwi SP-828

Equipment

• Front light: Lezyne Hecto E65
• Rear light: Syncros Rack Light
• Rear rack: Racktime SnapIt 2.0, 27 kg
• Curana aluminum mudguards
• Ursus kickstand
• Syncros trailer adapter

Ideal Use

• Everyday city commuting
• Commuting to work
• Touring
• Urban and suburban routes
• Leisure rides
• Carrying bags and loads on the rear rack
