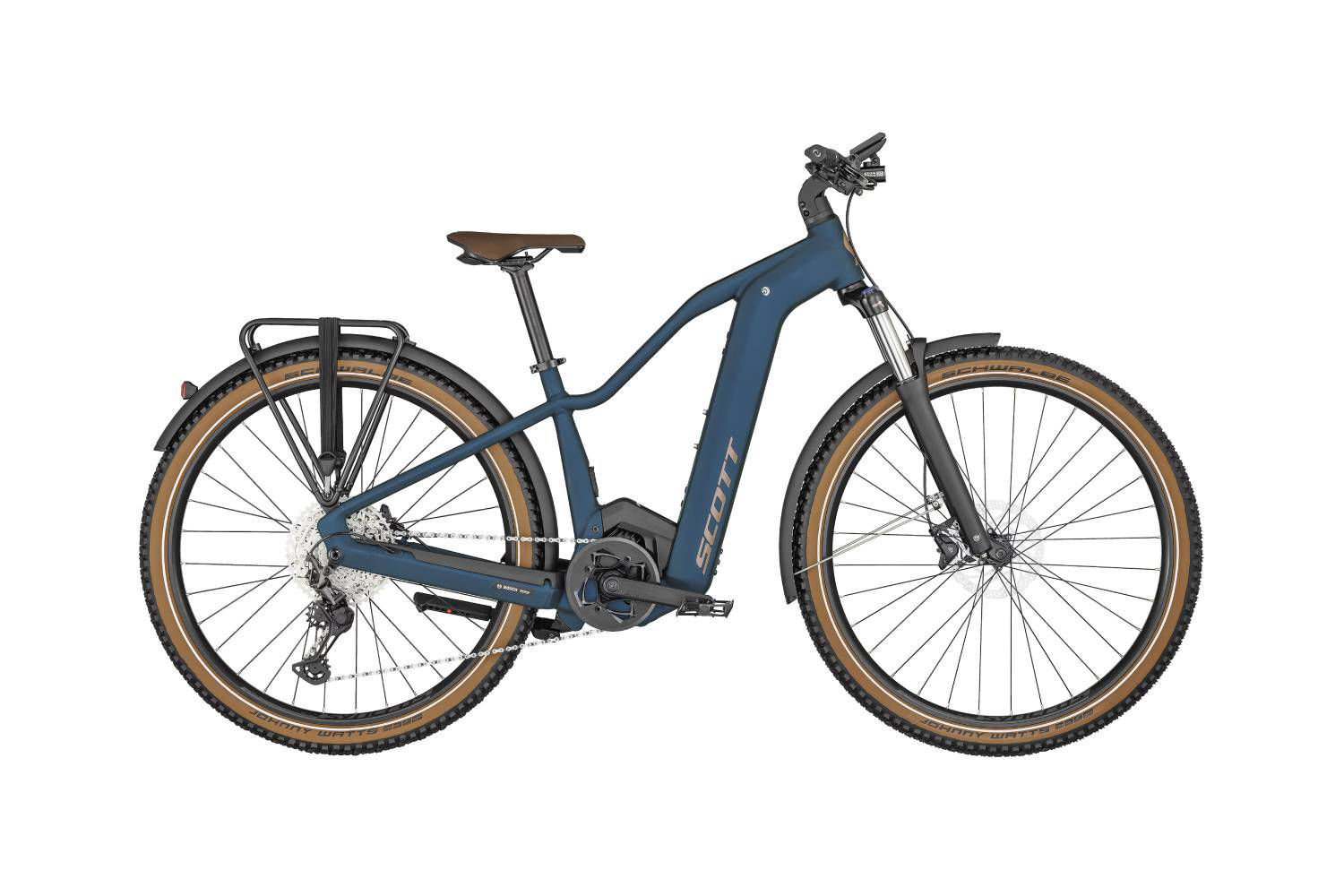

SCOTT Axis eRide 20 Lady

The SCOTT Axis eRIDE 20 Lady is a versatile e-bike designed for road rides, cycling tours and gravel routes. Its 6061 Alloy frame with women-specific geometry, Bosch Performance CX motor and 625 Wh PowerTube battery provide an excellent combination of comfort, range and performance.

The equipment is particularly complete and ready for everyday use and touring, thanks to the included rack, fenders, lights and kickstand.

Key Features

• Women-specific 6061 Alloy frame
• Bosch Performance CX BES3 motor
• Bosch PowerTube 625 Wh battery
• Bosch Intuvia 100 display
• Shimano 12-speed drivetrain
• SR Suntour XCM34 fork with 120 mm travel
• Shimano 2-piston hydraulic disc brakes
• Syncros X18 Disc 29" wheels
• Schwalbe Johnny Watts 29x2.35" tires
• Racktime SnapIt 2.0 rear rack
• Curana fenders
• Front and rear lights
• Ursus kickstand

Technical Specifications

Frame
6061 Alloy custom butted tubing
Women-specific frame
Integrated and removable Bosch battery
Internal cable routing

Fork
SR Suntour XCM34 Coil
Tapered
29"
Travel: 120 mm
15x110 mm axle
Lockout

Motor
Bosch Performance CX BES3

Battery
Bosch PowerTube 625 Wh

Display
Bosch Intuvia 100

Charger
Bosch 4A

Rear Derailleur
Shimano RD-M8100SGS
12-speed

Shifters
Shimano Deore Trigger SL-M6100RA

Crankset
Miranda, 172.5 mm

Chainring
38T Chainflow / Chainprotector

Chain
KMC E12S

Cassette
Shimano CS-M6100-12
10-51T
12-speed

Brakes
Shimano BR-MT410
2-piston

Brake Rotors
Front: Shimano SM-RT30 CL, 180 mm
Rear: Shimano RT-EM300M CL, 180 mm

Handlebar
Syncros 3.0
720 mm / 31.8 mm
8° / 20 mm rise
Syncros Lock-On Grip

Stem
Syncros with front light mount and Intuvia 100 display mount

Seatpost
Syncros M3.0 / 31.6 mm

Saddle
Syncros Capilano

Headset
Acros
1.5" - 1.5"
Semi-integrated
OD 50/61 mm / ID 44/55 mm

Front Hub
Shimano HB-MT400
15x110 mm

Rear Hub
Shimano FH-MT510B
Boost 12x148 mm

Spokes
Black Spokes

Rims
Syncros X18 Disc

Front Tire
Schwalbe Johnny Watts 29x2.35" Wired

Rear Tire
Schwalbe Johnny Watts 29x2.35" Wired

Lights
Front: Lezyne Hecto E65, 210 Lumens
Rear: Lezyne Fender

Rear Rack
Axis by Racktime SnapIt 2.0
Maximum load: 25 kg

Pedals
VP VPE-506

Extras
Curana Alloy Profile Fenders
Ursus kickstand

Weight

Approx. 27.52 kg

Maximum System Weight

128 kg, including bike, rider, equipment and any additional luggage.
